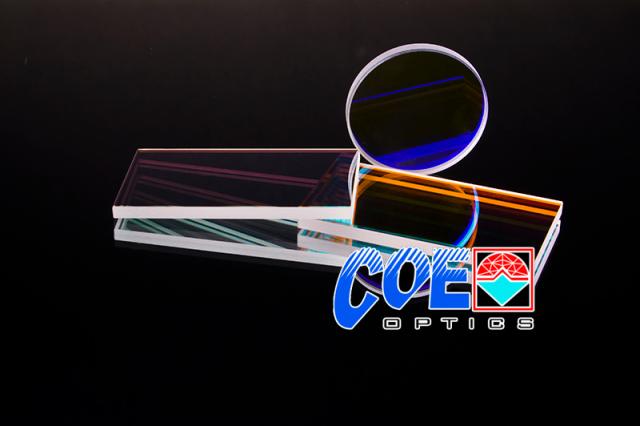

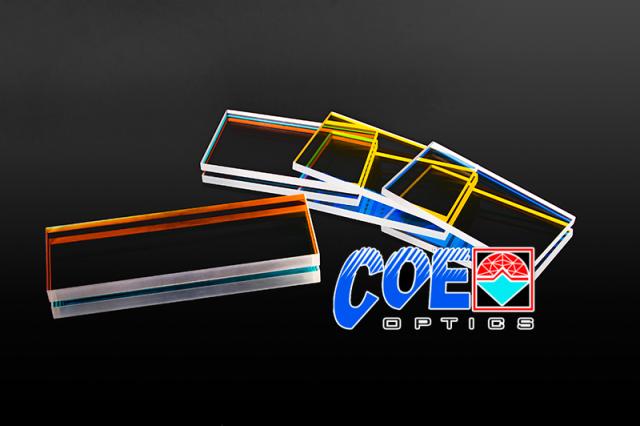

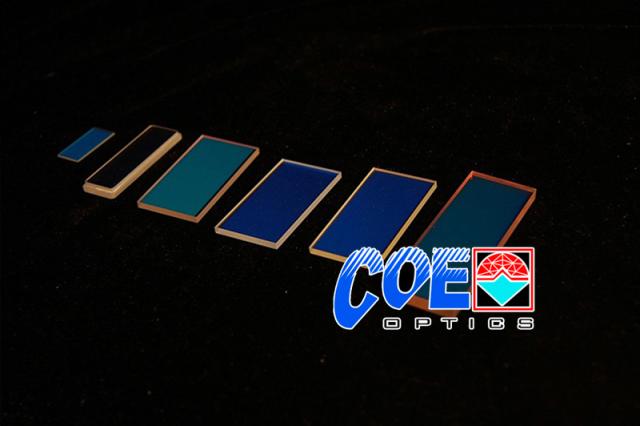

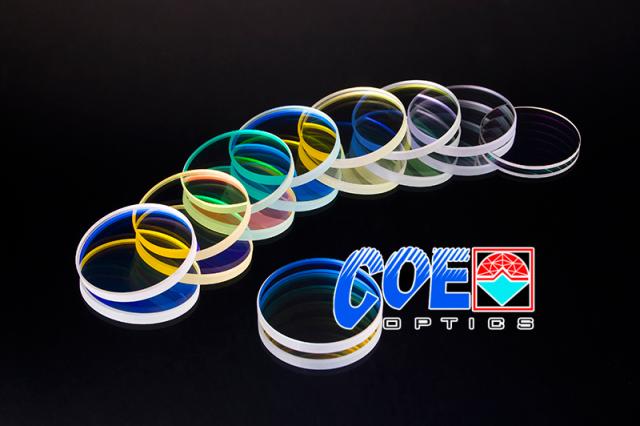

Shortpass Filters

A short pass (SP) Filter is an optical interference or colored glass filter that attenuates longer wavelengths and transmits (passes) shorter wavelengths over the active range of the target spectrum (usually the ultraviolet and visible region). In fluorescence microscopy, short pass filters are frequently employed in dichromatic mirrors and excitation filters.

Check with our sales engineers for Shortpass Filters for detailed.

Attribute Specification
Material Optical Glass
Optical Density OD ≥3.0
Coating: Traditional Coated
Clear Aperture CA (mm): 85%CA
Operating Temperature (°C): -62 to +71
Surface Quality 60-40
Thickness (mm): 1.00 ±0.2
Cut-On Tolerance (%): 5% of Peak Transmission
Surface Flatness: 3 - 5λ
